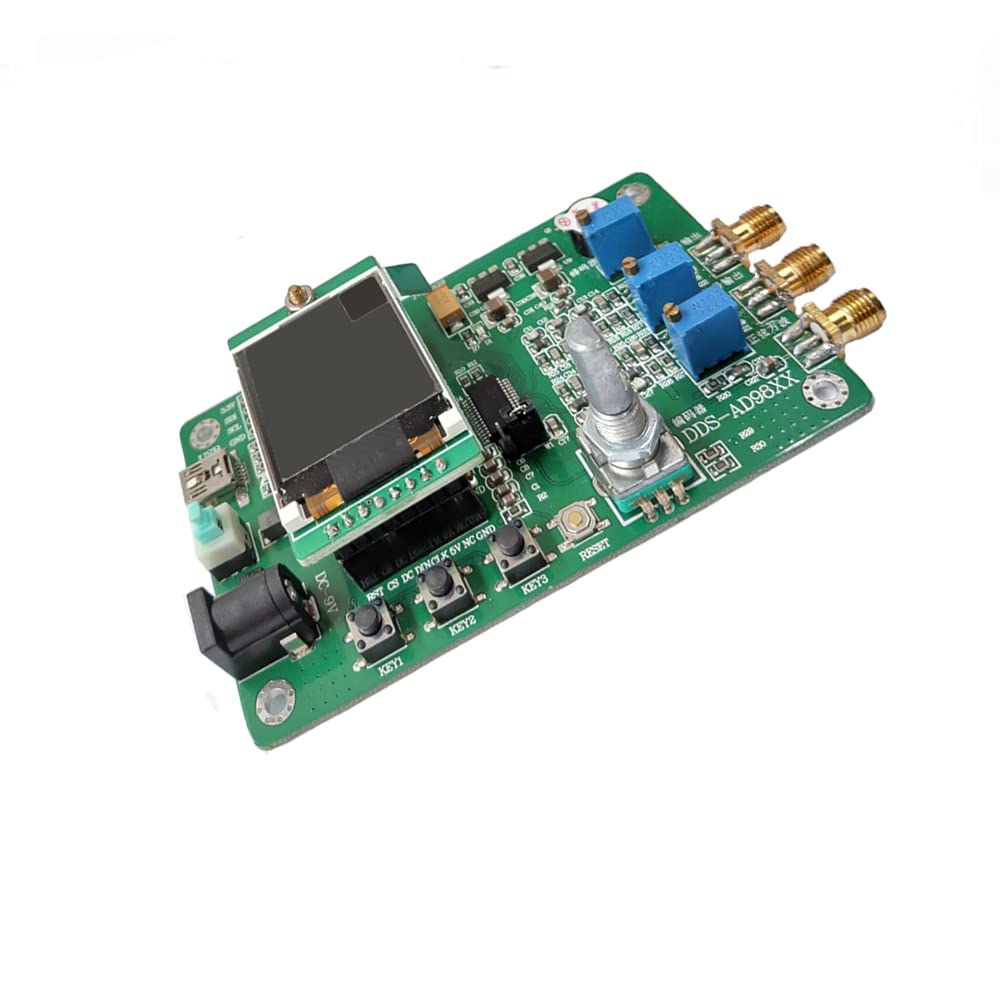

AD9851 DDS Module Signal Generator is Compatible with 9850 Frequency Function

Specifications: Product name: AD9851 high-speed DDS module Size: 100x60mm Power supply voltage: 7-9V (7V recommended) Single power supply: 2.7V~5.25V Low power consumption: 555mW (180MHz) SFDR>43DB（70 MHz Aout) Package: 1 X AD9851 high-speed DDS module DDS-9851/9580 Instruction KEY1 (left key), KEY2 (ok key), KEY3 (right key) The options on the main interface can be selected by pressing the left and right keys or by rotating the knob. OK key to confirm the selection, or press the knob to confirm the selection 1. Point frequency 2. Frequency sweep 3，Beep 4. Color 5. Others 1. Point frequency: change the value size from left to right (fine adjustment), rotate to change the value size (coarse adjustment, slow adjustment is required), press the OK key to select the data bit, output the point frequency, and update it in real time. Press the knob to return to the main interface. 2. Frequency sweep: When only one "&" symbol appears, the left and right buttons are used to switch the upper and lower options. When two "&" symbols appear, frequency sweep begins. At this time, except for the ok key, other keys are useless. When no "&" symbol appears, press the left and right keys to select the bit of the current option data, and rotate to change the value. Press OK to switch between three situations (one, two, or none of the "&" symbol will appear). Press the knob to return to the main interface. 3. Beep: default (YES), buzzer setting, left and right means selection, YES or NO, ok key returns to the main interface, and press the knob to exit. 4. There are 14 colors to choose from. a: Font (system font color), b: background (system background color), c: option (system current option color), d: cursor (cursor color during data setting). Switch abcd left and right. The knob rotates to select the color of an option. Press the OK ke

• Product name: AD9851 high-speed DDS module
• Power supply voltage: 7-9V (7V recommended)
• Single power supply: 2.7V~5.25V
• Low power consumption: 555mW (180MHz)
• SFDR>43DB（70 MHz Aout)
